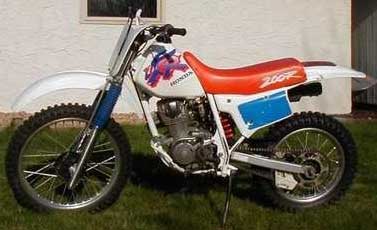

1993 XR200

Send any relevant info on the '93 XR200 to:  webmaster@justxr.com

1993 XR200 Bike Specifications:

Model Name:  XR200R2 2002 Model
Engine Type:  195cc air-cooled single-cylinder four-stroke
Bore x Stroke:  65.5mm x 57.8mm
Compression Ratio:  10.0:1
Carburettor(s):  24mm piston-valve
Ignition:  Solid-state CD
Transmission:  Six-speed
Final Drive:  #520 O-ring-sealed chain; 13T/47T

Wheel Base (mm):  1360mm
Seat Height (mm):  850mm
Ground Clearance (mm):  277mm
Fuel Capacity (litres):  9.1, 1.5 reserve

Front Tyre:  80/100-21
Rear Tyre:  100/100-17

Front Suspension:  36mm air-adjustable leading-axle Kayaba fork; 208mm travel
Rear Suspension:  Pro-Link Kayaba single shock with spring preload adjustability; 211mm travel

Front Brakes:  Drum

Rear Brakes:  Drum

Dry Weight (kg):  105

Other Info:

Engine & Drivetrain
195cc Air cooled 4 stroke single.
24mm carburetor.
Quiet, USDA-qualified muffler/spark arrester.
Primary kickstarting with automatic decompression system for easy starting in any gear.
Lightweight aluminum crankcase.
Maintenance-free solid-state CD ignition.
Smooth-shifting, versatile six-speed transmission.
Heavy-duty clutch offers smooth, progressive engagement.

Chassis/Suspension
Lightweight semi-double-cradle high-tensile steel frame.
36mm leading-axle Kayaba front fork offers 8.2 inches of suspension travel.
Fork boots keep dirt and moisture away from fork seals.
Heavy-duty Kayaba rear shock.
Pro-Link(r) rear suspension rides on needle bearings for smooth action and durability.
Box-section steel swingarm with snail-type chain adjusters and drop-in axle holders for easy maintenance.
Powerful, lightweight drum brakes.
Strong, lightweight rims with straight-pull spokes.
Heavy-duty O-ring-sealed chain for durability and reduced maintenance.
Motocross-style seat is low, comfortable and allows maximum rider movement.
17-inch rear wheel contributes to a low seat height.
Large, 2.4-gallon plastic fuel tank and thrifty four-stroke engine for long range.

Additional Features
Easily detachable number plate.
Tubular steel engine guard.
Folding shift lever and brake pedal tips.
Reusable foam air filter for reduced maintenance costs.
Front and rear steel sprockets for durability.
High-quality handlebar, comfortable grips and dogleg levers with brush guards.
Cleated, folding, self-cleaning footpegs and brake pedal for secure footing.
